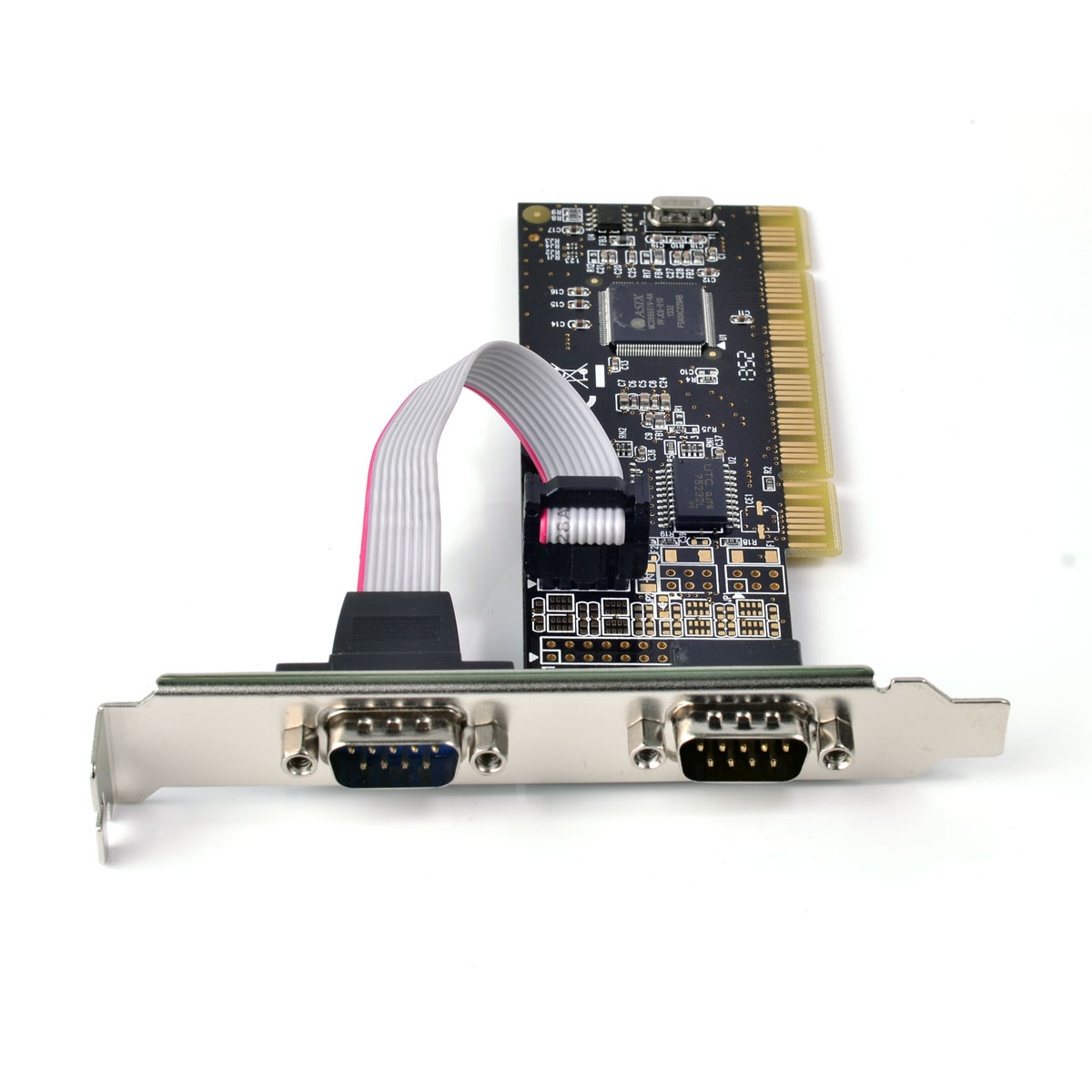

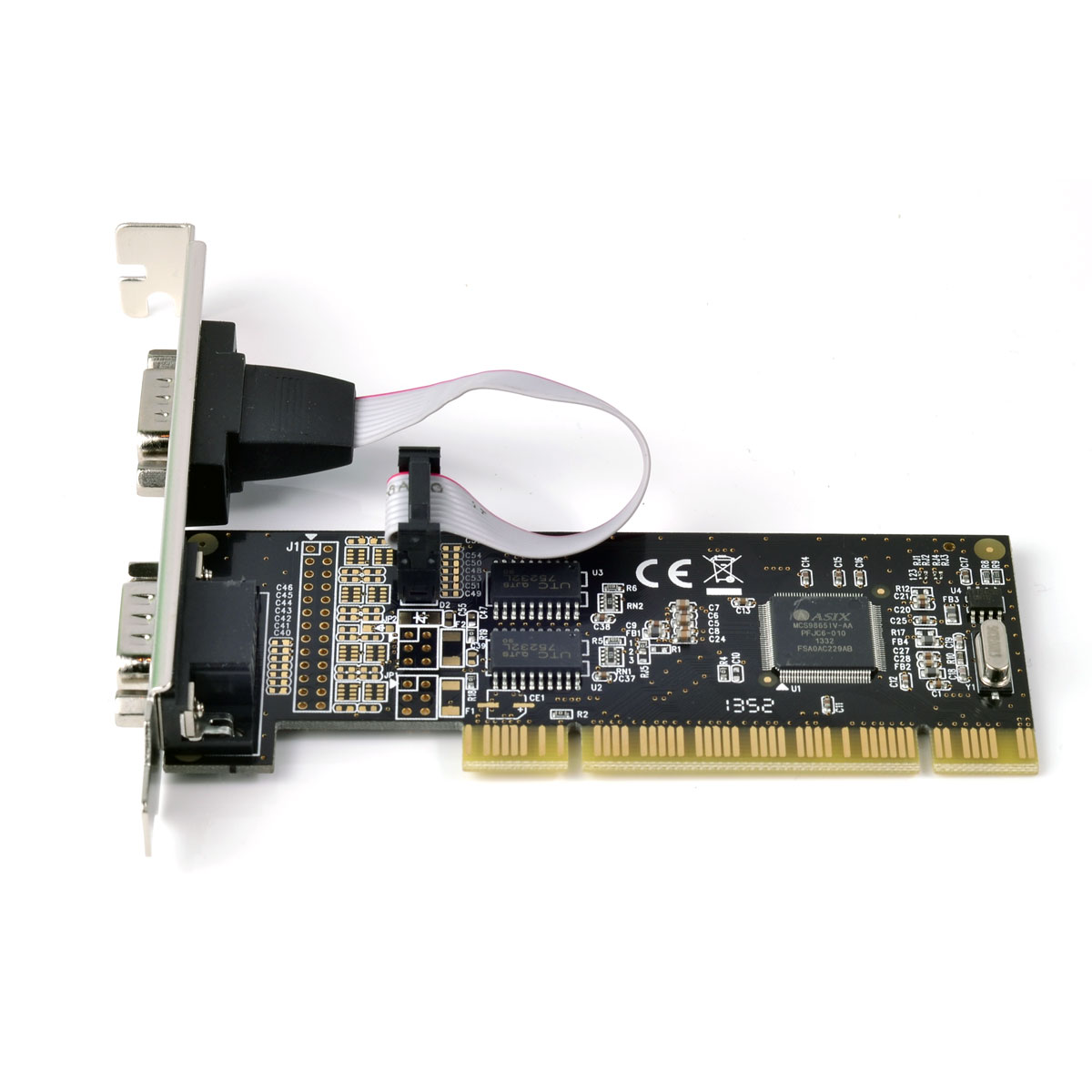

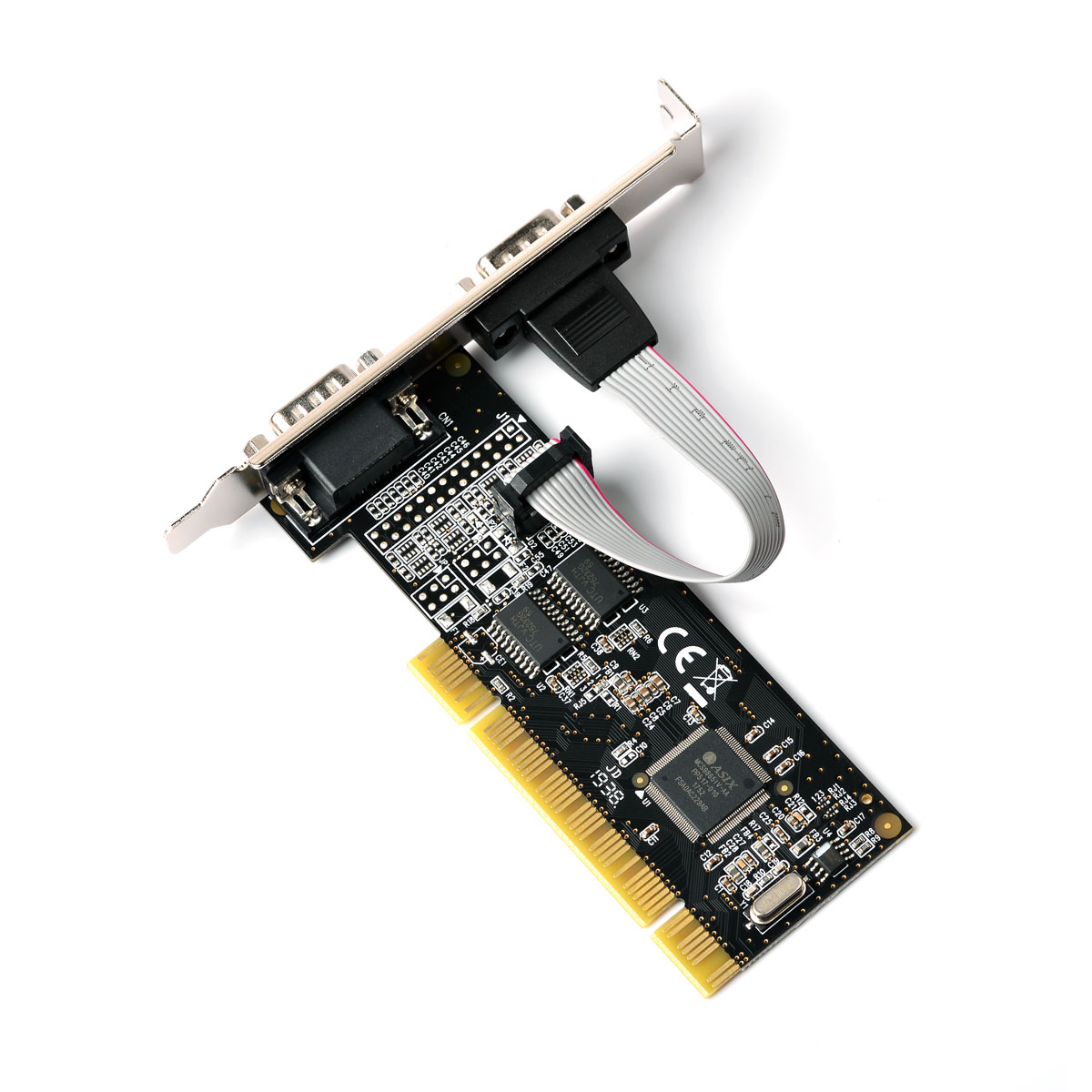

2 Port DB9 Serial PCI Card

E1-PCI9865-2S is a PCI based Peripheral Controller. It supports dual-channel high performance Serial Ports. It is ideally suited for Desktop PC and Notebook applications. E1-PCI9865-2S is fully Compliant with PCI Local Bus Specification, Revision 2.3. It supports five functions through single device.

On-Chip Serial Ports of MCS9865 support extended 16C550 UART mode and support serial speeds up to 16Mbps. It has 256 byte deep Transmit and Receive FIFO for each UART. Deep FIFOs enable high serial speeds / throughputs and reduce CPU Utilization. Each Serial Port is compatible with industry standard 16C550 devices including Standard COM Port of Industrial PC.

PCI Interface:

Fully compliant with PCI Local Bus

Specification, Revision 2.3

Compatible for MiniPCI application

requirements

Fully customizable PCI Configuration Space

Compatible with 3.3V and 5V PCI signaling

Supports PCI Power Management

Serial Port:

Four 16C 450 / 550 / Extended 550 compatible UARTs

Supports RS232, RS485 & RS422 modes

Bi-directional Speeds from 50 bps to 16 Mbps / Port

Full Serial modem control

Supports Hardware, Software flow control

5, 6, 7, 8, 9-bit Serial format support

Even, Odd, None, Space & Mark parity supported

Custom BAUD rate support with external clock / by programming internal PLL

On Chip deep 256 Byte FIFOs in Transmit & Receive paths of each Serial Port

Supports remote wakeup and power management features

Serial Port transceiver shutdown support

Supports Slow IrDA on all Serial Ports

OS SUPPORTED:

All Windows OS

Linux

Dos
